PatchPin

Concrete patching pin

Helifix PatchPin

PatchPin is a short stainless steel helical pin that provides a strong mechanical key when patch repairing reinforced concrete.

System Components

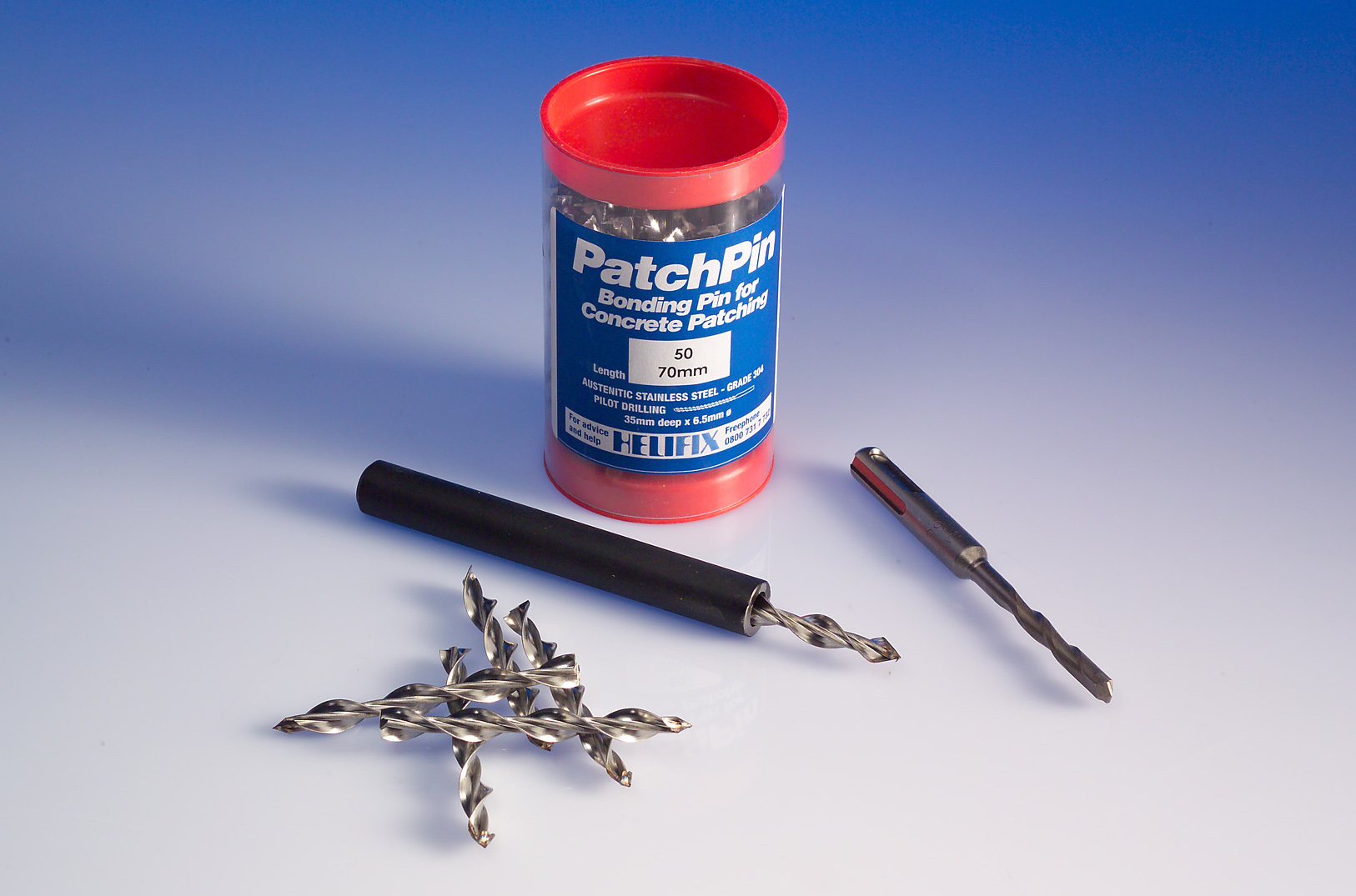

  • PatchPins
  • Power drill support
  • Drill bit

Installation

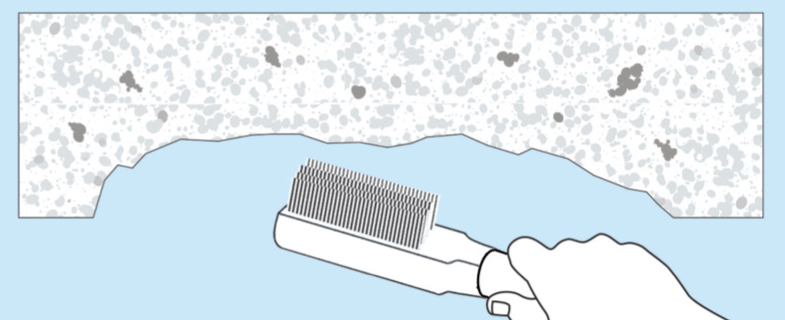

1. Remove all loose concrete from the area to be patched. Hammer tap the area to establish if any hollows are present and break back to sound concrete. Remove any dust and debris with a stiff wire brush. Clean and treat any exposed embedded steel rebar with a suitable epoxy coating.

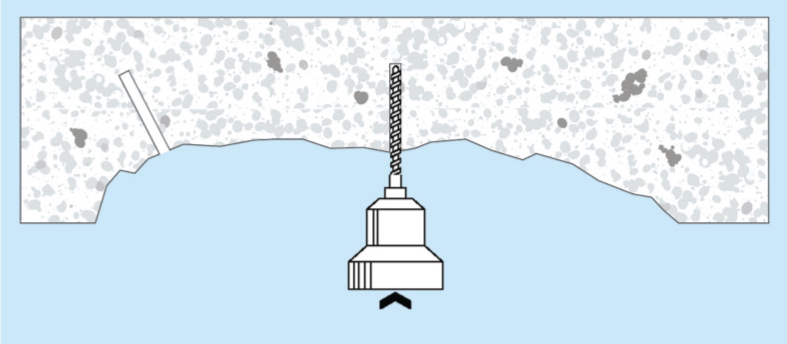

2. Drill pilot holes, vertically or at an angle of up to 45°, to the correct diameter and spacing into the concrete (using an SDS rotary hammer drill).

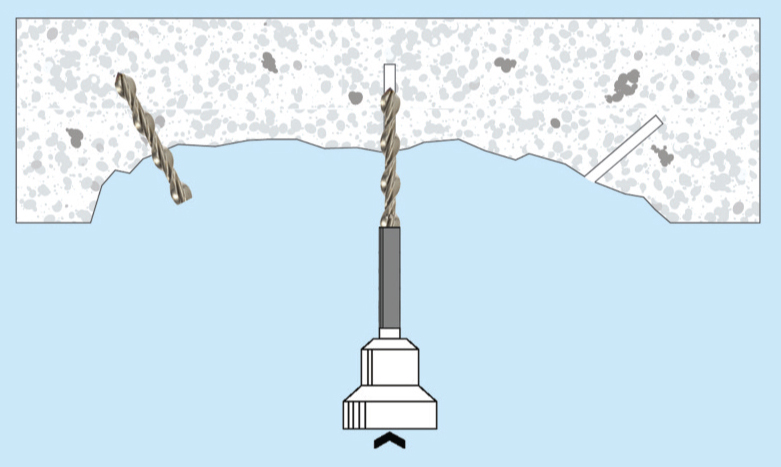

3. Fit the PatchPin support tool over the drill bit and insert the PatchPin into the tool. Install the PatchPin into the pilot hole with the SDS rotary hammer drill set to hammer only. Ensure that the outer end of the pin will be below the face of the concrete patch – the pin can be bent, if required

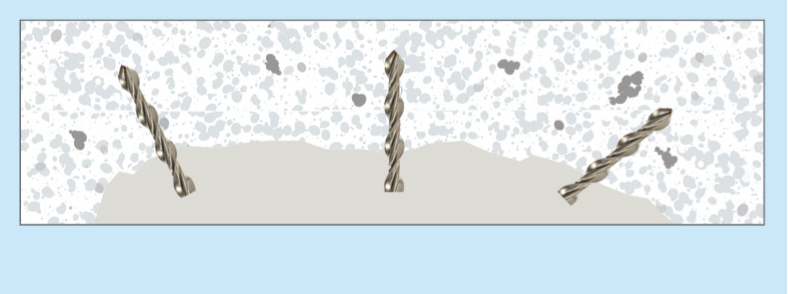

4. Apply the patching mortar, as required, in accordance with the Manufacturer’s instructions. Fill all gaps and make good the surface.

Additional Advice

  • Pin spacing and position may be varied to suit site conditions
  • Pins are to be installed approx. 50mm from the edge of the patched area
  • Intermediate pins should be at 150-200mm centres. Extra pins may be used at the discretion of the site management or the engineer in charge
  • Pins should be applied at not less than two pins per patch

Applications

Stainless steel helical pin for providing a strong mechanical key when patch repairing reinforced concrete

Features

  • Forms powerful bond with patching mortar
  • Additional mechanical bonding security
  • Can be installed vertically or angled and bent after installation, if required

Benefits

  • Requires no chemicals
  • Quick, simple and effective
